Description:

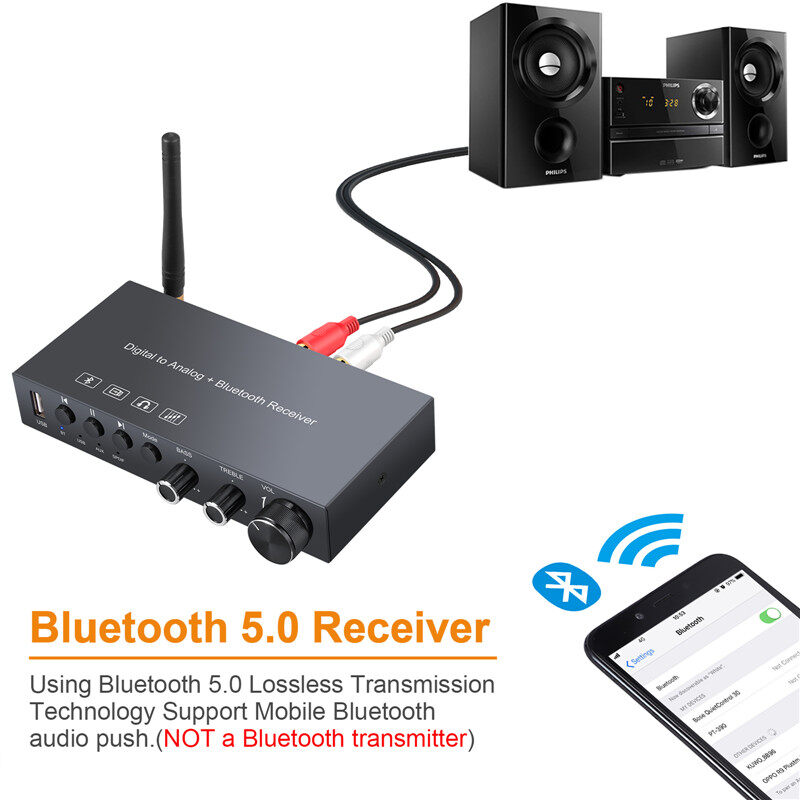

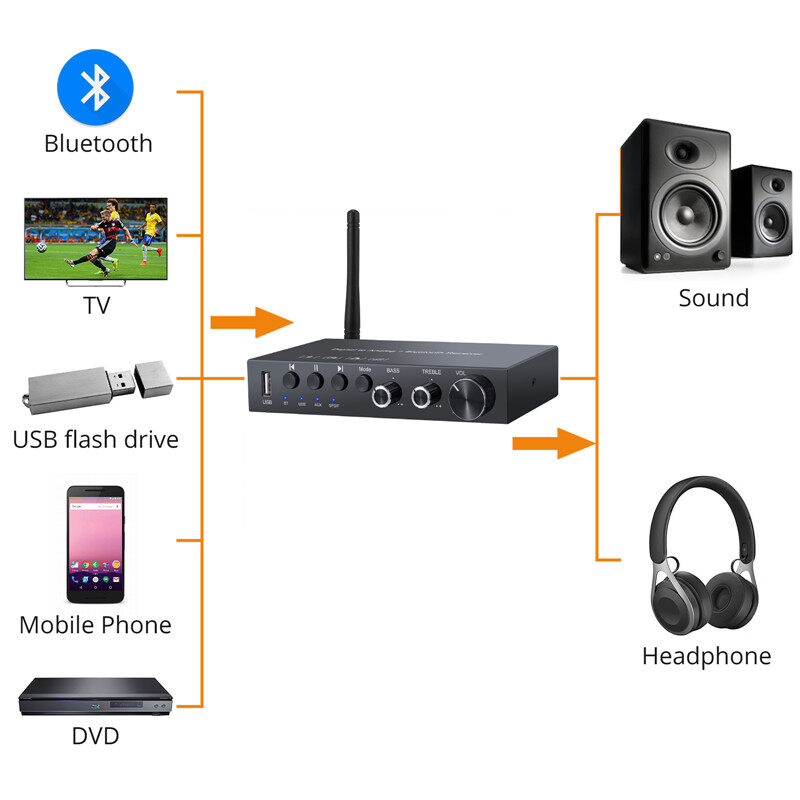

This digital to analog audio converter is specially designed for either home or professional audio signal switching. It converts coaxial, Toslink digital audio, stereo audio or Bluetooth signals to analog stereo audio signal. It is also a digital music player with USB flash drive input supporting MP3,WAV,APE,FLAC and WMA lossless formats.
Specifications:

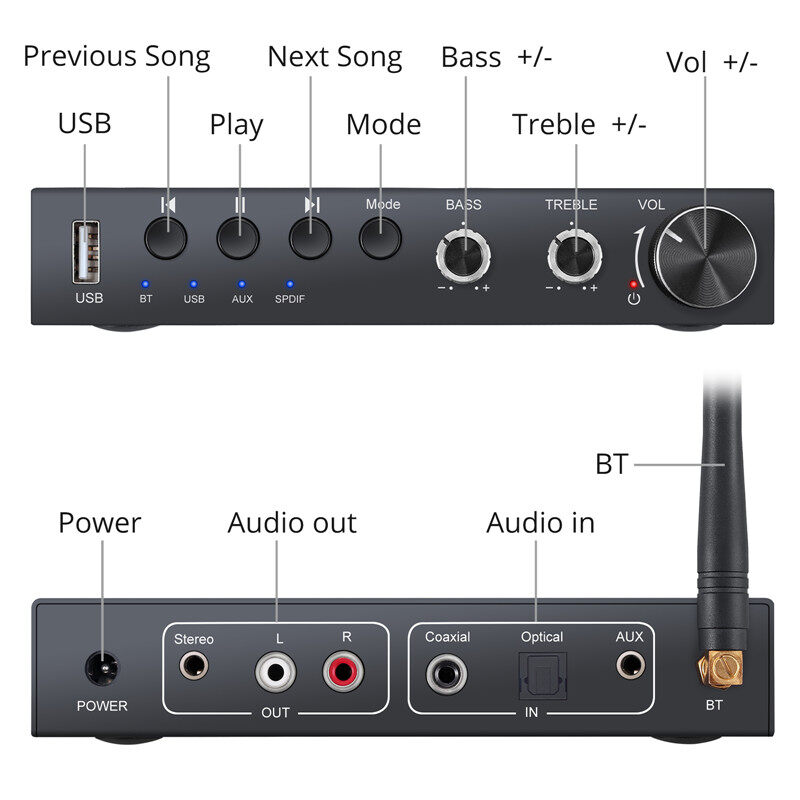

Input: Bluetooth, USB, AUX, Coaxial, Toslink
Ouput: R/L stereo, 3.5mm jack headphone
Bluetooth version: V5.0
Bluetooth decoder: SBC, AAC
Bluetooth protocol: A2DP V1.3.1, AVRCP V1.6 ,HFP V1.7, HSP V1.2
Bluetooth distance: < 10M
Bluetooth name: GV-AUDIO
Optical/Coaxial input audio format: PCM / LPCM
Optical/Coaxial input sampling rate: 32, 44.1, 48, 96 and 192KHz
Headphone amplifying power: 125mW x2 @ 32Q
Suggest headphone eesistance range: 16-3002
THD: <0.003%
Frequency response: 20Hz - 20KHZ
SN (Signal to Noise Ratio): 100DB
Operating Temperature: 0°C to 70°C
Operating Humidity: 10% to 85% RH (no condensation)
Storage Temperature: -10°C to + 80°C
MAX Power: 2.5W

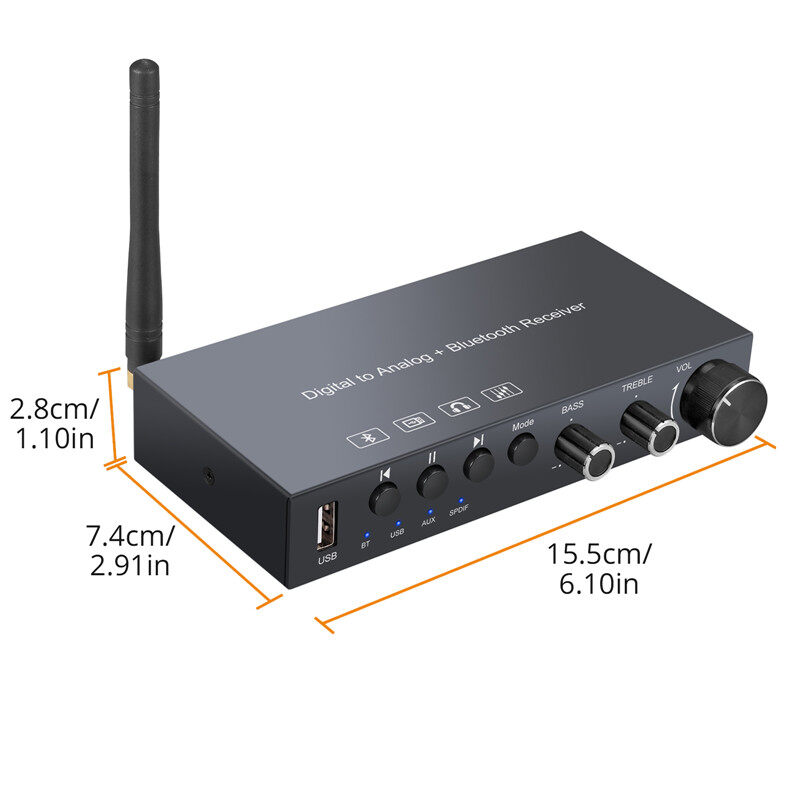

Dimensions (L*W*H): 155*73.9*28.5mm
Net weight: 380g
Note:
The DAC SPDIF input only supports PCM and LPCM audio signals and does not support Dolby, DTS, or other surround sound signals.
Therefore, It is important that the digital audio output of your device defaults to or can be set to PCM/LPCM output. Otherwise the sound output will be noise/static.
Package contains:
1 x digital to analog audio converter
1 x Optical cable（1m）
1 x USB power cable
1 x Power Adapter
1 x User manual
